3+1 Axes Aluminium CNC Machining Center

3200mm ATC Aluminum Profile CNC Machining Center

For processing round holes, slot holes, key holes, water slot, special-shaped holes etc.

1. Main Feature For Aluminium Drilling Milling Machines

● it's appropriate for process ball hole, slot, keyhole, special hole of business metal alloy profile, door and window, curtain wall aluminum alloy profile and aluminum profile milling, chamfering, craft engraving and different processes.

● The main shaft adopts Italian air-cooled electric main shaft, power 9KW, speed 24000RPM. It has high precision, good safety and high reliability.

● Equipped with professional CAD-CAM programming software for industrial numerical control system, it can be connected to domestic and foreign door and window curtain wall software and ERP, CAD graphics import, powerful functions, simple operation and high efficiency.

● The worktable is turned 180°, -90°~0°~+90°, the profile can be processed on three sides at one time. When processing deep through holes (shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and good quality. .

● The standard 6-bit/8-bit tool magazine can realize continuous and uninterrupted machining.

● An automatic mercury oil supply system is introduced, and the tailor uses a spray cooling device controlled by the system.

● The main parts of the machine tool are made of steel structures, all of which have undergone vibration aging and stress relief treatment.

Standard Equipment

• Processing tools (6 pieces)

• Cabinet providing protection in processing zone

• Chips Collect Box

• Automatic Lubrication

​

Optional Equipment

• Automatic Moving Fixture

• Optional length on X-axis can working with 2500mm 3200mm 5500mm 6000mm etc

• Barcode reader

2. Specification and Parameter

3. Sample Holes After Working:

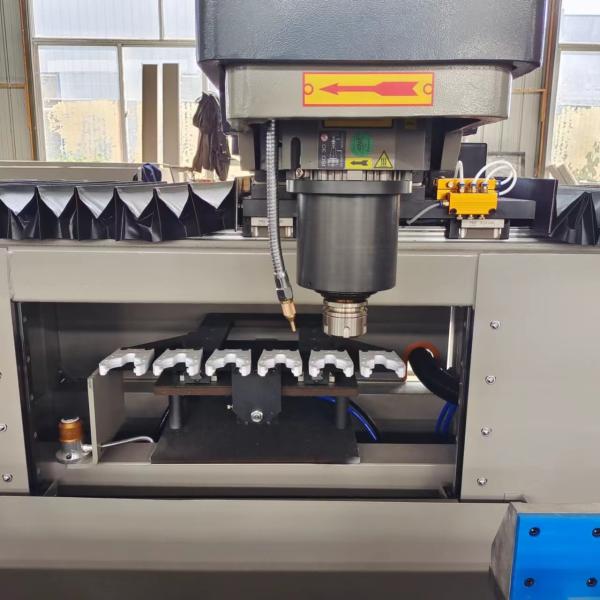

4. Machine Details

3+1 Axes CNC Machining Center

Aluminium CNC Machining Center

3+1 Axes Aluminium CNC Machining Center

3+1 Axes Aluminium CNC Machining Center Images
